Description

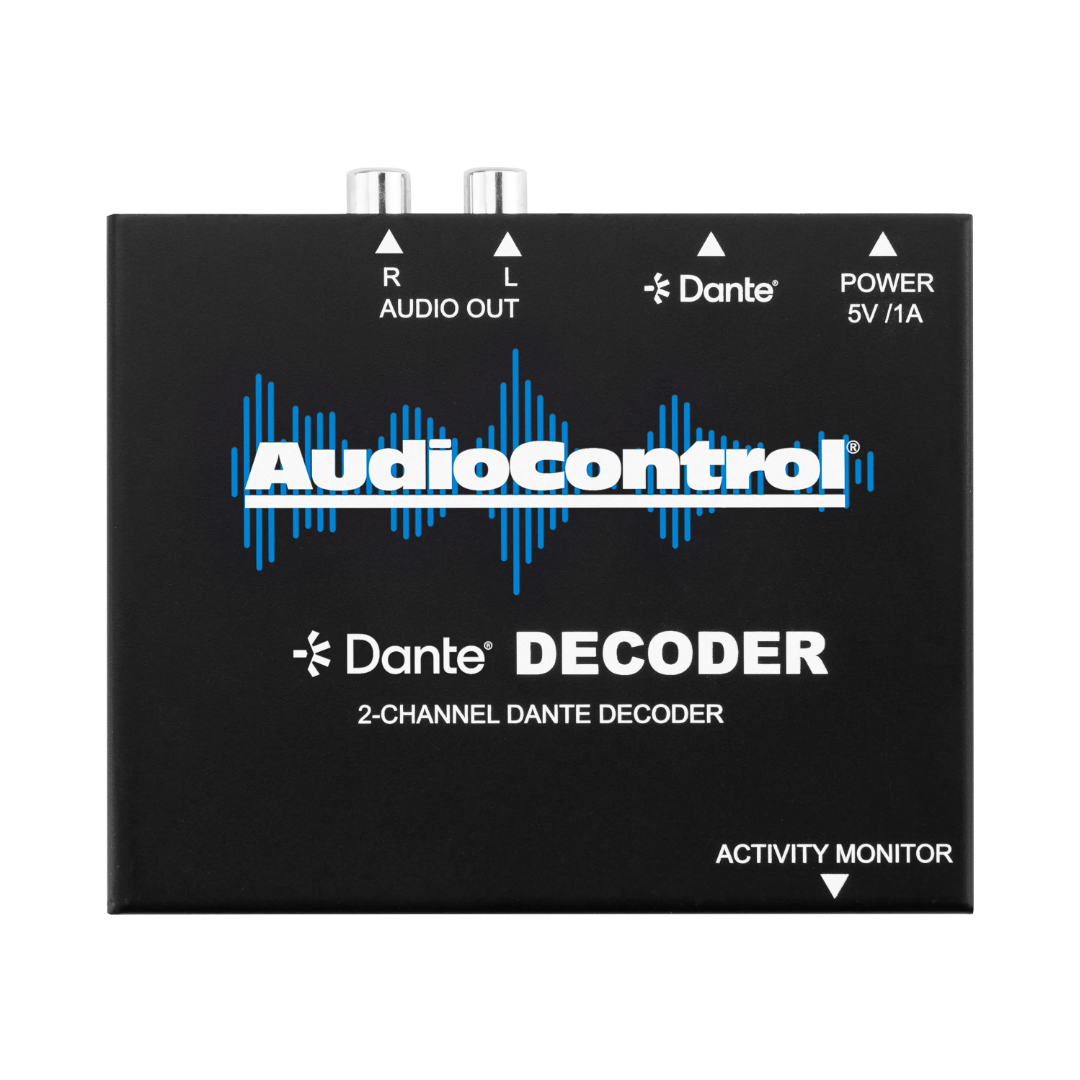

The AudioControl ACP-DANTE-D-POE is an ultra-compact, two-channel Dante™ network audio decoder designed for lossless Dante or AES67 audio streams. It supports industry-standard sampling rates from 44.1 kHz up to 96 kHz with 16-, 24-, or 32-bit audio, converting network audio back into high-quality analog output.
With PoE power and a compact form factor, it can be placed close to endpoint devices for flexible installation. When paired with an AVPro Edge MXnet 1G PoE switch and proper CAT5e or CAT6A cabling, it supports network runs up to 100 meters (328 ft).
Configuration is handled through Dante Controller, where integrators can set routing, network settings, and AES67 parameters. Once connected, the device is automatically discovered on the Dante network for quick setup.
#gap-577288032 {
padding-top: 30px;
}
#image_1818904257 {
width: 70%;
}
Specifications:
| AUDIO | |
| Frequency Response | 20-20kHz |
| Analog Input Voltage | Balanced or Unbalanced 1VRMS (2.828VP-P) at 0 dBFS |
| Format | LPCM |
| Supported Sample Rates | 44.1kHz, 48kHz, 88.2kHz, 96kHz |
| Supported Bit Depths | 16, 24, 32 |
| Latency | Configurable 1, 2, 5ms |
| AUDIO CONNECTIONS | |
| Analog Output | 1x Stereo RCA |
| Dante Network Audio | 1x RJ-45 |
| POWER | |
| USB Type-C Power Adapter | Input: 100-240VAC, 50/60Hz, 0.5A
Output: 5VDC, 1A |
| PoE via RJ45 | Power over Ethernet |
| ENVIRONMENTAL | |
| Operating Temperature | 23°F (-5°C) to 125°F (51°C) |
| Storage Temperature | -4°F (-20°C) to 140°F (60°C) |
| Humidity Range | 5% to 90% RH (no condensation) |
| DIMENSIONS | |
| Mounting | Furniture Mount Support |
| Height x Width x Depth (Single Unit) | Millimeters: 110 x 96 x 25
Inches: 4.33 x 3.78 x 1 |
| Height x Width x Depth (Packaged Unit) | Millimeters: 193 x 136 x 41
Inches: 7.6 x 5.35 x 1.62 |
| Weight (Single Unit) | 0.5 lbs (0.23 kg) |
| Weight (Packaged Unit) | 0.85 lbs (0.38 kg) |
| Product Warranty | 5 Years |
